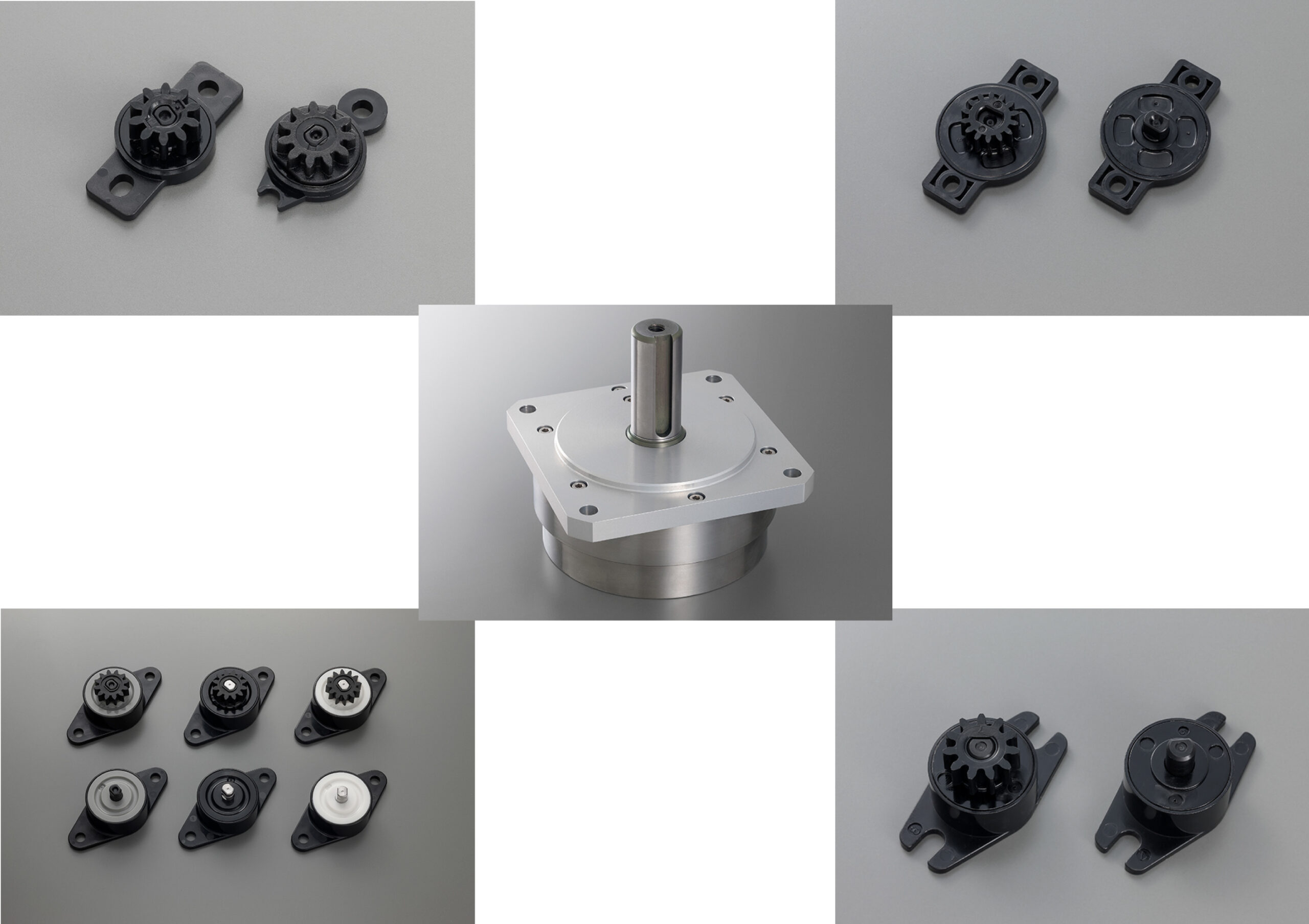

Rotary Damper

It is extremely versatile.

We are also good at making custom orders, and this damper is highly customizable.

Speaking of parts that apply brakes, the rotary clamper is famous.

It is a mechanical part that applies the brakes by using the viscous resistance of oil.

We also accept a variety of custom orders, from changing the viscosity of the oil to changing the shape created from the mold.

There are two types of torque generation methods.

There are two types of torque generation methods.

This is a rotary damper that uses the viscous resistance of oil.lt works by applying braking force using the resistance when oil passes through the clearance between the rotor and the main case. There are no restrictions on the angle of use, so it can also be used for linear movement.

Vane dampers: Limited angle of use, large torque

A rotary damper that uses oil pressure.The principle is that in addition to viscosity, the pressure generated when the vane and main case approach each other acts as resistance. The maximum usable angle is determined by the model, so it is ideal for applications where the usable angle is limited, such as opening and closing a lid.There is a limit to the angle.The advantage is that it is compact and can provide high torque.

For example, in a place like this

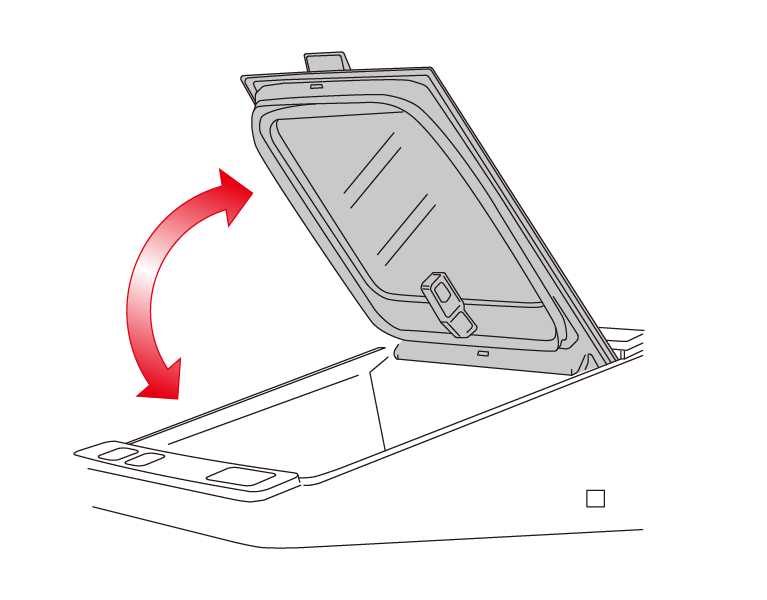

  • Washing machine glass top lid
    Washing machine glass top lid

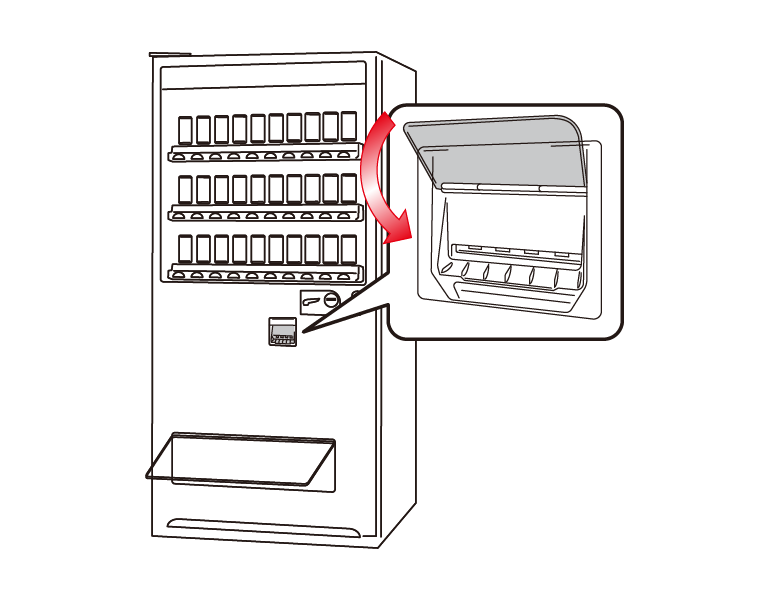

  • Vending machine bill compornent
    Vending machine bill compornent

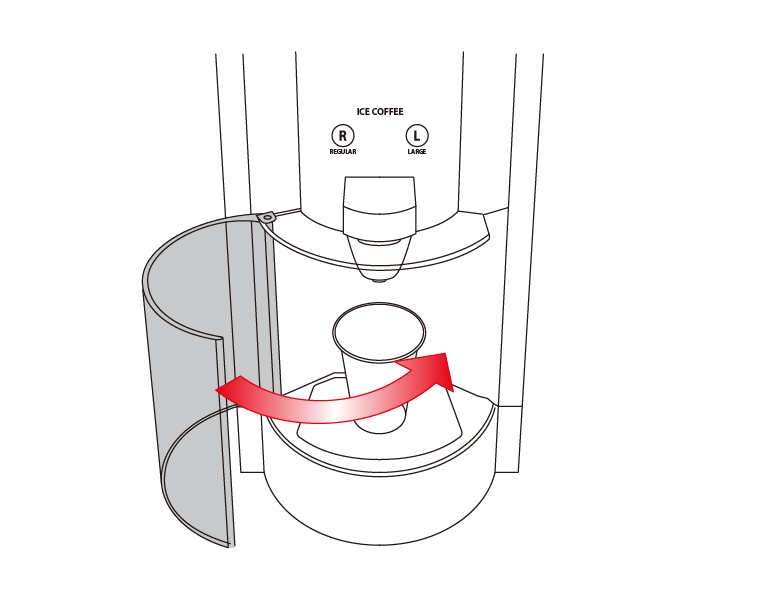

  • Coffe machine
    Coffe machine

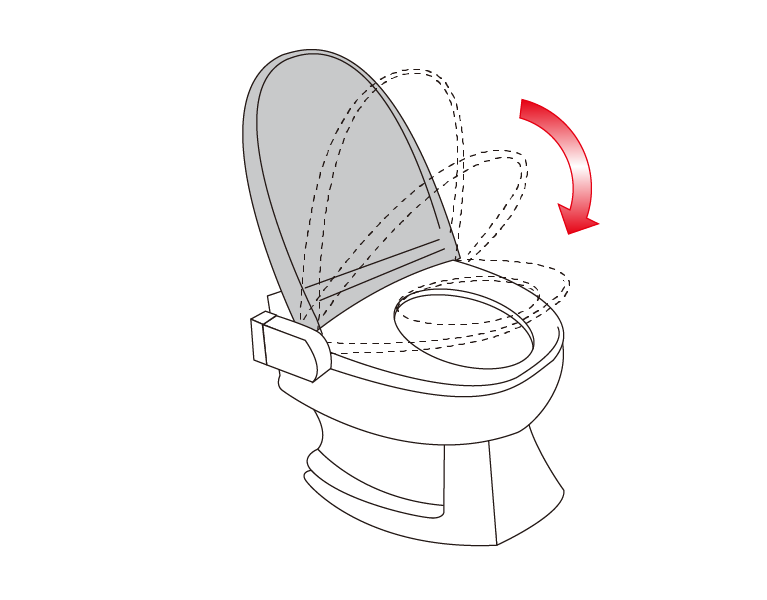

  • Toilet seat/lid
    Toilet seat/lid

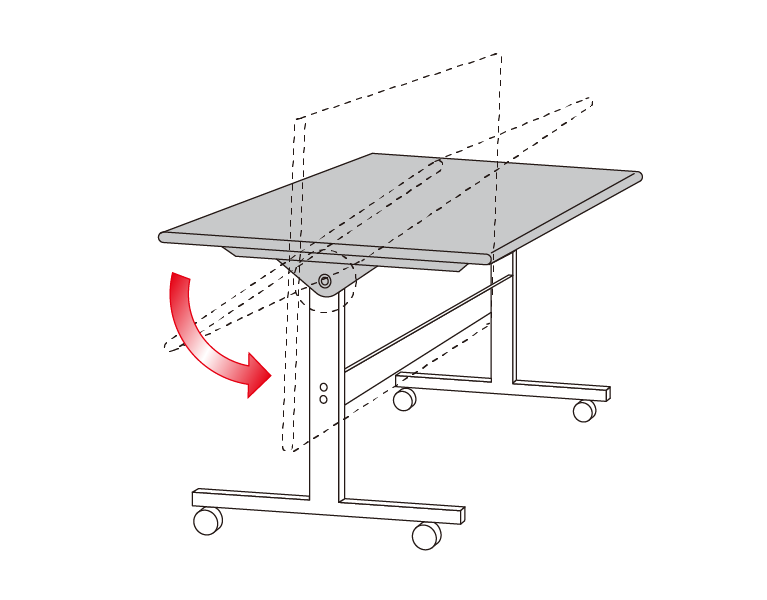

  • Conference room tables
    Conference room tables

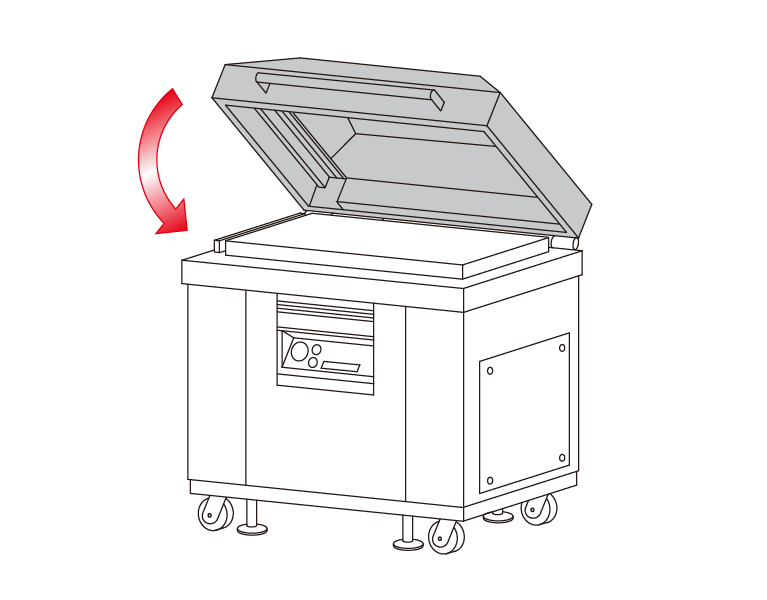

  • Large machine cover opning / closing
    Large machine cover opning / closing
