How to choose a suitable shock absorber

Model selection

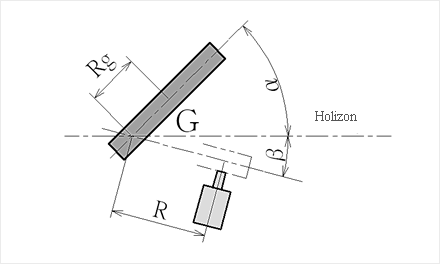

Rotating motion・Vertically rotating fall, descend・Free fall


Mass of colliding object M ： kg
Distance to the gravity center of colliding object Rg ： m
Distance to the Absorber R ： m
Initial central gravity angle of collision object α ： degree
Colliding angle of collision object β ： degree
Numbers of soft absorber N ： pieces

* If inputting other figure rather than "1", only FIXED TYPE shall be selected.

Number of collision per minute C ： times/minutes
Moment of inertia I ： kg・m²
　

Calculating Moment of inertia

Choose the shape

  • Round table (Rotating central point is in the center)
  • Beam, Door (Rotating central point is in the edge)
  • Beam, Door (Rotating central point is in the center)
  • Corner table (Rotating central point is in the center)
  • Tip load arm
  • Concentrated load

Round table (Rotating central point is in the center)

Diameter d ： m
Mass M ： kg

Beam, Door (Rotating central point is in the edge)

Length L ： m
Mass M ： kg

Beam, Door (Rotating central point is in the center)

Length L ： m
Mass M ： kg

Corner table (Rotating central point is in the center)

Length of side-a a ： m
Length of side-b b ： m
Mass M ： kg

Tip load arm

Length of side-a a ： m
Length of side-b b ： m
Length of arm L ： m
Length till tip center R ： m
Mass of tip M1 ： kg
Mass of arm M2 ： kg

Concentrated load

Length L ： m
Mass M ： kg

Calculation result has been reflected.
